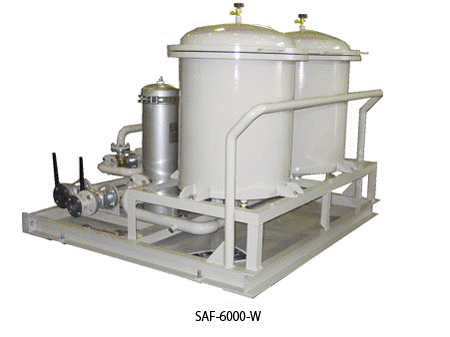

General

This portable type fuller’s earth filter designed for regenerating and filtering the deteriorated transformer insulating oil. Through the treatment, the fuller’s earth powerfully improve the dissipation factor(Tanδ), abosrb total acid value, discolor.Sludge, particle impurities will be removed by means of special filter media.
We use paper type fuller earth to effectively equalize the filtering area, excellent for speedy replacement and maintenance. Caster mounted for easy transportation.

Features

• OIL REGENERATION
  Improve dissipation factor(Tanδ),Color Correction, total acid value
• SPEEDY TREATMENT
  Fuller’s Earth idea for speedy oil regeneration
• EASY MAINTENANCE, LOW RUNNING COST

•

General Specification

• Capacity: 6000L/Hr (50Hz) 7200L/Hr (60Hz)
  * More effective result can obtained by means of long time circulation
• Power Supply: 3 Phase AC200V~
• Fuller Earth Paper: 80pcs/tank
• Outlet filter: 5μm

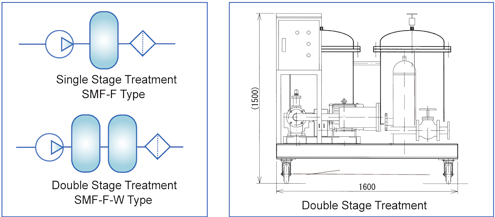

• Option: 2 tank type (* double efficiency)

Example of use
